Klipsch Stream Support

This page is for general support data for the Klipsch Stream series. If y'all accept any questions not answered here, please visit our main Back up page.

How many Play-Fi products tin I take on my network?

• Nosotros recommend connecting a maximum of 32 Play-Fi products to your domicile network. Y'all tin can certainly add together more, but we can't hope the performance volition be equally solid equally it is with this limit.
• You can connect to upwardly to 16 Play-Fi products and stream the same vocal to all of them at one time from your phone, tablet, or Windows PC.
• You tin can stream sound to up to four zones at once, from a unmarried device. Each zone can have up to 16 speakers grouped together, with each zone streaming from a unlike audio source from inside the Play-Fi app.
• Upwardly to viii different people tin can be streaming different songs to dissimilar speakers from different devices at the same time, without whatsoever interference or congestion.
• When rebroadcasting a Line In source, you lot can broadcast upward to iv additional speakers.

Supported Audio Formats and File Quality

Play-Fi streams audio directly from source devices to the speakers, and supports a wide variety of streaming formats and audio quality levels.

Supported File Formats

• .mp3 (MPEG Layer III)
• .m4a and .aac (Advanced Sound Coding / Apple tree Lossless)
• .flac (Free Lossless Audio Codec)
• .wav (Waveform Audio File)
• .aiff (Audio Interchange File Format)

File Quality

• Upwardly to 24-bit/192kHz. (Ultra-high resolution)
• Files upward to 16-bit/48 kHz (CD Quality) are streamed with fleck-for-flake accuracy, with naught pinch or transcoding. With ultra high-resolution files, Play-Fi down-samples the audio to CD quality (16-fleck/48kHz) for manual. This allows for the most reliable streaming experience over Wi-Fi to multiple speakers.
• In Disquisitional Listening manner, audio files in high resolution (24-bit/96 kHz) can exist played and rendered accurately to one Play-Fi product with no compression, down-sampling, or network distortion.

Adding speakers and creating speaker groups

At any time when using the Play-Fi app, or from the Play-Fi applet in Windows, if you want to add more speakers, merely press the Play-Fi icon. In the apps, the icon is in the bottom right side of the screen, and in Windows, it appears in equally a system icon in the lower bar.

This volition open the Play-Fi Control screen.

On this screen, you can see the speakers tied to each source and adjust their volume individually or all together. Pressing the Add together/Remove push button will expand the speaker listing to all of those on your network, and allow y'all to make any changes you similar to the current ready of active speakers.

If you really like this set of speakers, you can make them into a preset Grouping, and so that you can easily select them for playback, or even accept them automatically connect when you launch the app. To do this, only select the "Save every bit Grouping?" selection at the lesser. Yous'll give them a name and be all set. If yous ever desire to make or edit groups exterior of playback, just hit the Settings button on the Play-Fi Control screen, and select the Speaker Groups.

Multi-zone Streaming

Play-Fi supports streaming different audio to different rooms or zones, directly from your Play-Fi app. So, for example, y'all tin transport Pandora downstairs for a dinner party, and keep Radio Disney playing upstairs for the kids.

To set up up a new zone, simply open up the Play-Fi Control screen past pressing the Play-Fi button in the app.

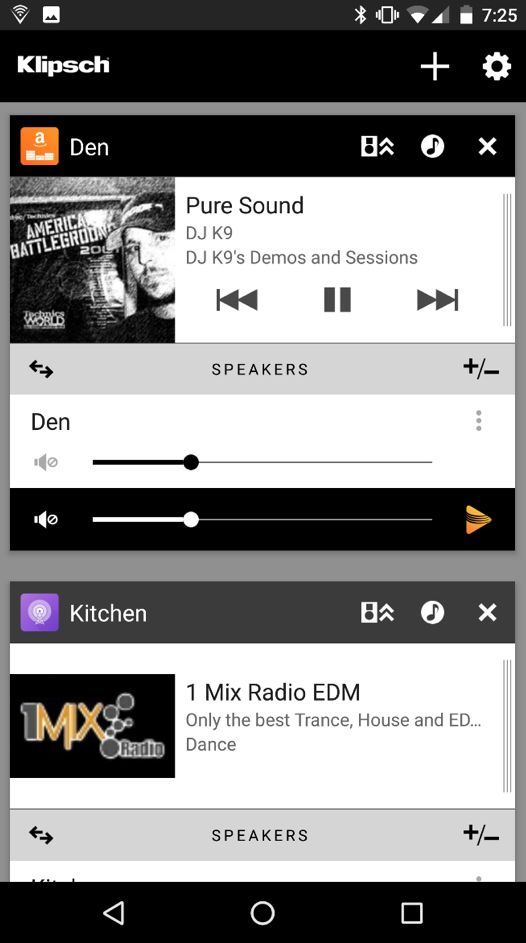

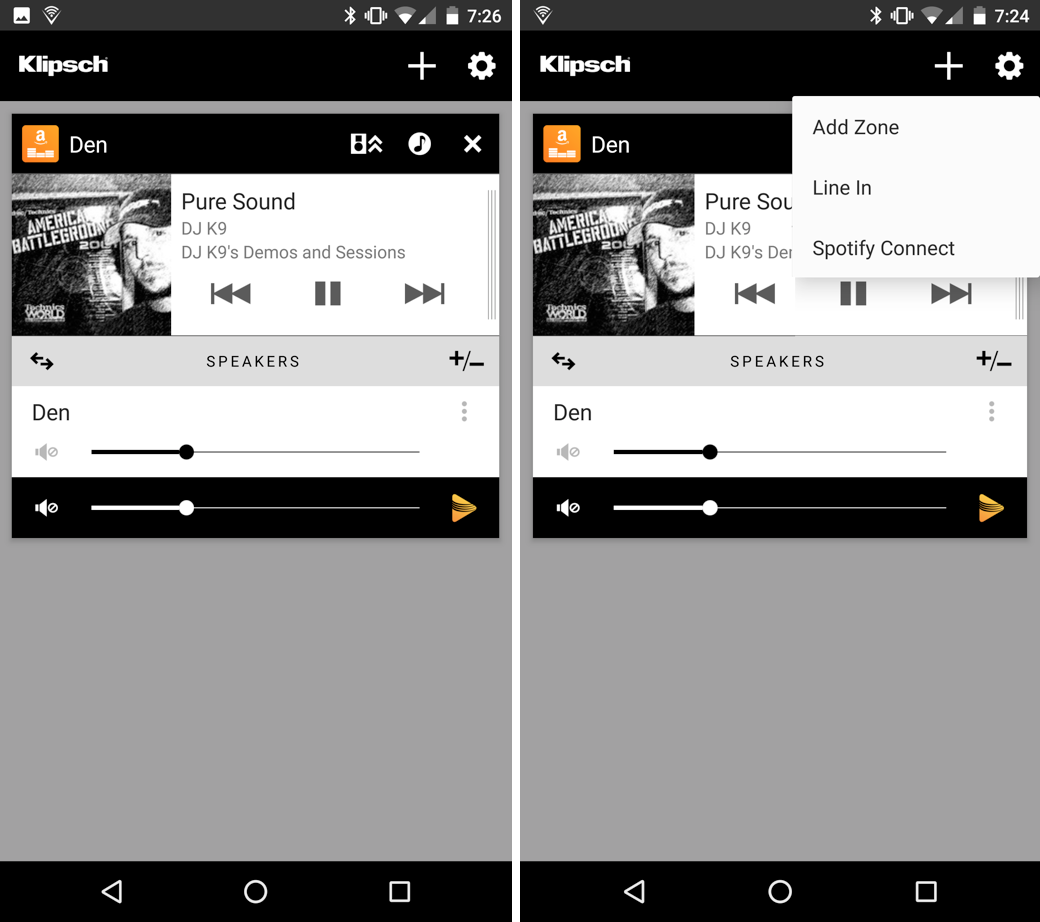

You will see the currently playing Play-Fi products and what they are playing in a Zone module. To add another Zone, only printing the Plus icon in the top right of the screen, which we've pointed out for you here.

A new Zone module volition be created allowing you to option you Grouping or private Play-Fi product, and then you can select your audio source. Once configured, you can press the Play-Fi push button to return to the Play-Fi Command screen, where you can easily manage each Zone.

You tin can have upwardly to four zones at once, and each zone tin can include up to 16 speakers (yous tin only use four speakers when rebroadcasting a Line In). Each zone does have to play from a different music source or server.

Critical Listening Mode

Play-Fi will normally play dorsum all files information technology supports in their native formats and encoding. High resolution files are a special case, and though they are not transcoded, they are down-sampled to CD quality to maintain stream and network performance.

For those who wish to hear high resolution audio every bit originally intended, Critical Listening manner will enable native rendering of high resolution files up to 24/96, with no down-sampling or network synchronization adjustment. In this mode, audio files retain their original sound integrity.

Since the loftier resolution audio files are not down-sampled in this mode, they will remain uncommonly large. We back up all modes over standard Wi-Fi, including Critical Listening, but a wired connexion may improve the experience for those with network issues.

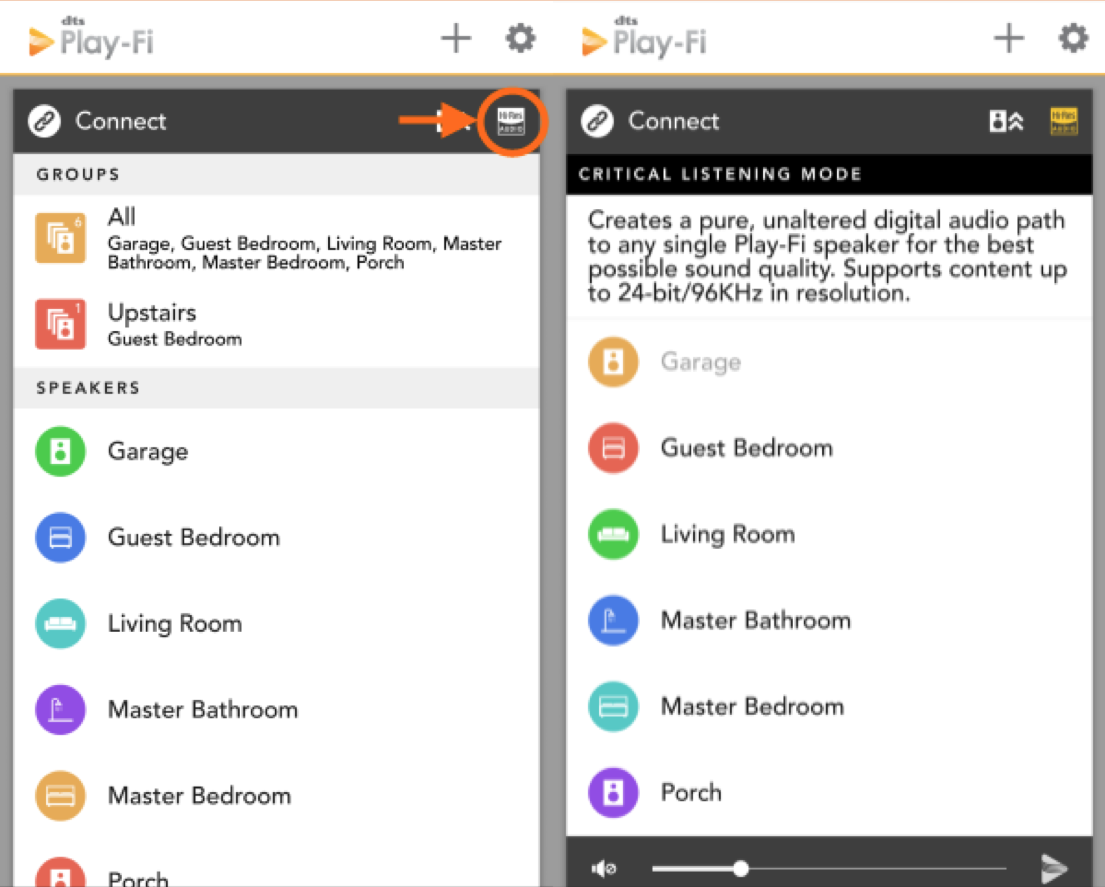

Enabling Critical Listening Mode Before selecting a Play-Fi product, tap the Hi-Res button in the peak bar of the zone module. This will change the list to brandish the Play-Fi products that are compatible with this mode. Well-nigh Play-Fi products support Disquisitional Listening, just if you'd like to know more than about your production, contact info for your brand may be institute on the primary Cognition Base of operations page.

Select your single production of choice, so play from your desired source for the truest audio reproduction over Wi-Fi or Ethernet.

(Disquisitional Listening Mode is only supported by the Gate, PowerGate, and The Three)

Can I stream video and hear the audio on my Play-Fi product?

With the Klipsch Stream app y'all cannot stream video from your device. The apps are built to support streaming audio but. There will be a filibuster to the other speaker considering of the fourth dimension it takes to buffer the signal. Nosotros have decided to proceed the Video in sync with the Sound Bar then in that location is no lip sync delay, but the rest of the speakers will exist in sync with each other, simply will be delayed from the source Audio Bar.

The best time to use this feature would be when watching things like sports, where you want to hear what is going on in some other room but tin't see the video since information technology'southward in some other room. In this example, information technology won't thing if the sound is in sync with the video. If you apply other sources other than HDMI like Optical or Analog, the audio will be delayed to exist in sync with the rest of the speakers so it will not be in sync with the video. This would exist the best method if you were using a streaming sound service from a TV or set-top or streaming box, for example.

Will Play-Fi work with Wi-Fi range extenders and repeaters?

Yes. To become optimal performance, ensure that the DHCP server is properly configured, and that each extender/repeater is set upward as an access point that does not overlap with the Wi-Fi aqueduct. Information on these settings can be plant in the owner's transmission of your router, or their online support tools. You tin can also contact customer back up for guidance.

What routers are uniform with Klipsch Stream?

Please meet this PDF for a list of routers that Klipsch has tested with Klipsch Stream products. Please notation, this listing is not a list of ALL routers that are compatible.

List of Play-Fi Compatible Routers - tested by Klipsch

Incompatible Network Setups

Klipsch Stream is non compatible with Office or Invitee networks

Klipsch Stream products are built to evangelize a wonderful audio listening experience at dwelling, on a personal Wi-Fi network. Offices and other business organization-class networks similar hotels, airports, and areas with "guest" Wi-Fi networks are almost always set up upwards to disable media streaming products. This is done for security reasons, and to preserve bandwidth. Regardless of the reason, these environments are not suitable for apply of your Klipsch Stream products.

If for some reason you lot practise need to use your Klipsch Stream products in an part surround, work with your Information technology section or network administrator on set.

We also have a partial listing of Incompatible Network Setups available for download (PDF).
